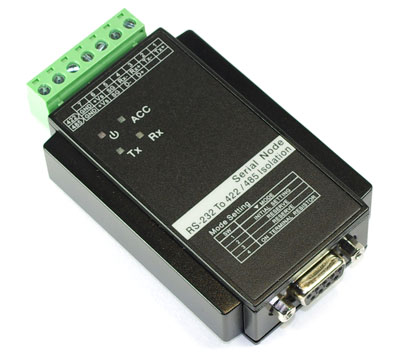

Item Number: SN-101i |

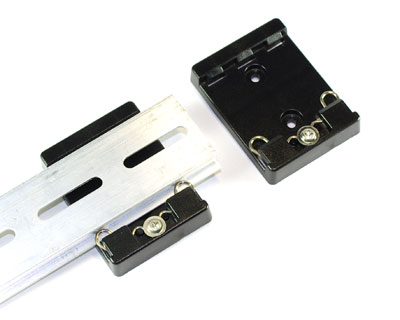

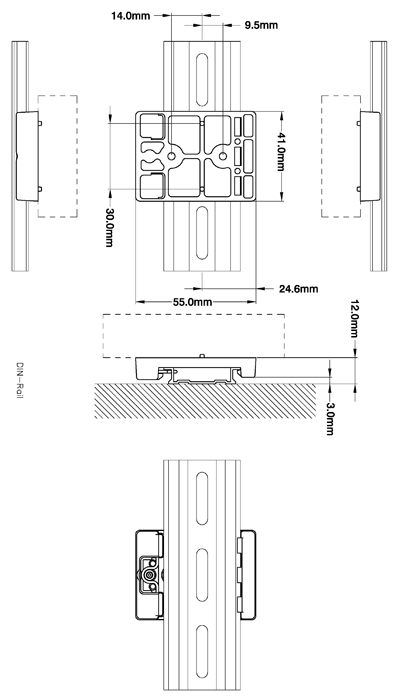

| RS-232 to RS-422/485 Converter + Addreessable function + 3KV Isolation + 600W Surge + DIN Rail Kit |
|
Feature |
| RS-422/RS-485 transceiver |
| Industrial specification |
| Isolation 3000VDC |
| 600W Surge |
| RS-232 and RS-422/485 can be different baud rate |
| Auto direction flow control on RS-485 |
| Addressable and non-addressable mode configurable |
| Transmission speed up to 115.2 kbps |
| High isolation voltage up to 3000Vrms |
| Surge protection on RS-422/485 lines |
| Easily setup and installation |
| Built-in microprocessor |
| Watchdog timer function included |
| All communication setups stored in EEPROM |
| Power and data flow indicator for troubleshooting |
|
Specifications |
| Transmission Speed (bps): |
300 ~ 115,200 (RS-422/485 and RS-232 can set to different baud rate |
| Data Format: |
(RS-232) (RS-422/485 is fixed to 1 stop bit, non-parity, 8 data bits format) |
| Stop bits |
1, 2 |
| Parity type: |
None, Even, Odd |
Data bits: |
5, 6, 7, 8 |
| RS-232: |
| connector |
9 pin D-sub female |
| Signals |
RXD, TXD, RTS, CTS |
| RS-422: |
| mode |
Differential 4 full duplex wires |
| Signals |
TX+, TX-, RX+, RX- |
| protection |
Surge protection on signal pins |
| RS-485: |
| mode |
Differential 2 half duplex wires |
| Signals |
DATA+, DATA- |
| protection |
Surge protection on signal pins |
| Isolation |
Optical 3000 VDC max |
Environmental |
| Operating Temp |
-30~75℃ |
| Storage Temp |
-40~85℃ |
| Humidity |
5~95% Non-Condensing |
| Case |
PC |
| Power Requirement |
+10V to +30VDC Unregulated with against power
reversal |
| RS-232 to RS-422/485 Addressable Converter Isolation is an intelligent RS-485/422 to RS-232 converter it is designed for connecting RS-232 devices to RS-485/422 network and other RS-485/422 devices. |
| Most widely used computer systems, PLCs, and measuring equipment and industrial devices, its transmission speed, communication distance, especially the network ability is limited due to unbalanced transmission. The RS-232 to RS-422/485 Addressable Converter Isolation converter solves this problem, so you can easily build a RS-485/422 multi-drop network with your RS-232 device address assignment for each to communicate more easily. |
|
|
|
| |
|
