Item Number: AP-510

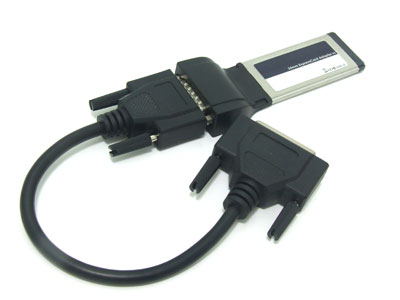

1 port Parallel 34mm ExpressCard

Feature

ExpressCard slot x 1
Industrial specification
Expand single IEEE1284 Parallel port on system
Auto-switching between ECP/EPP/SPP/BPP modes without configuration
Low profile fits small-sized PCs
Plug-n-Play, I/O address and IRQ assigned by system
Parallel - Maximum data transfer rate of 1.5Mbps
 ECP (Enhance Capacity Port) / EPP (Enhance Parallel Port)
 SPP (Standard Parallel Port) / BPP (Bi-direction Parallel Port

Specifications
Bus Interface ExpressCard slot x 1
Ports 1
chipset Controller

Oxford
Parallel IEEE1284
Speed Maximum 1.5MBps
FIFOs Parallel 16 byte (Hardware)
I /O Address Assigned by BIOS
IRQ Assigned by BIOS
Signals
Parallel SPP/ECP/EPP/BPP

Software
Driver
Windows Windows 2000, Windows XP/2003/Vista/2008/7 x86/x64
Linux 2.4 and 2.6

Hardware
Connector DB25F

Environmental
Operating Temp -30~75℃
Storage Temp -40~85℃
Humidity 5~95% Non-Condensing
Case PC
