Item Number: AD-510 |

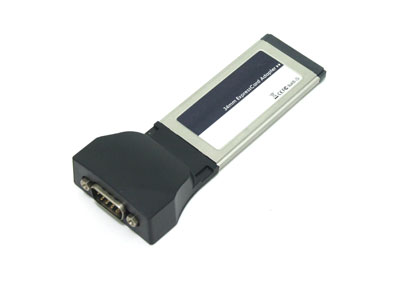

| 1 port RS-422/485 34mm ExpressCard + 600W Surge |
|
Feature |
| PCI Exress x 1 |
| Industrial specification |
| 921.6 Kbps maximum baudrate for data transmission |
| 600W Surge |
| 256-byte FIFO and on-chip |
| 34mm/54mm supports |
| 15 KV ESD protection on the board |
| Max. 10 Device Connectivity for RS422 Multi-Drop Mode |
| Max. 32 Device Connectivity for RS485 Mode |
|
Specifications |
| Bus Interface |
ExpressCard |
| Ports |
1 |
| chipset Controller |
Exar |
| Serial Standards |
RS-422/485 |
| Protection |
15KV ESD Protection for all signals |
| RS422/485 signals Surge Protection |
| Data Bits |
5,6,7,8 |
| Stop Bits |
1,1.5,2 |
| Parity |
None,Even,Odd,Space,Mark |
| Flow Control |
RTS/CTS, XON/XOFF |
| Baudrate |
up to 921.6kpbs |
| FIFOs |
256 byte |
| I /O Address |
Assigned by BIOS |
| IRQ |
Assigned by BIOS |
| Serial Signals |
| RS-422 |
TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND |
| RS-485-2w |
Data+(B), Data-(A), GND |
| RS-485-4w |
TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND |
Software |
| Driver |
| Windows |
Windows 2000, Windows XP/2003/Vista/2008/7 x86/x64 |
| Linux |
2.4 and 2.6 |
Hardware |
| Connector |
DB9M |
Environmental |
| Operating Temp |
-30~75℃ |
| Storage Temp |
-40~85℃ |
| Humidity |
5~95% Non-Condensing |
| Case |
PC |
|
| |
|
|
| |
|
